Read the current Pattern in Info
Check dimensions, required beads, color details, and readiness
Open your saved Project from Dashboard, then select Info in the right panel. This tab stays available in Compare, Pattern, and Crafting. It describes the currently applied Pattern, even when a source preview or left-side setup change is waiting to be applied.

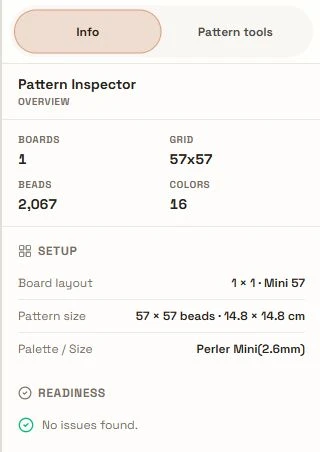

Overview reports the applied Pattern.
- Grid includes blank cells; Beads counts filled cells only.
- Check board coverage, applied palette, and readiness notices.

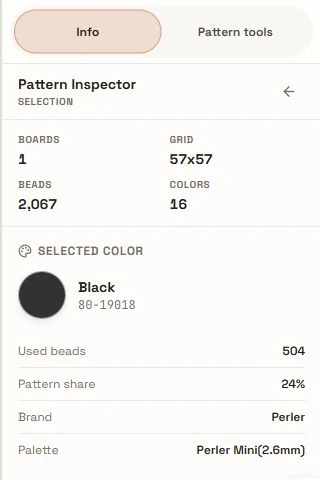

Select a used color for material details.
- Black needs 504 beads in this Pattern; this is not your stock quantity.
Check the overview
Read the board count, grid dimensions, filled bead count, and number of used colors. Setup shows the applied board and palette. Readiness calls out conditions to review before exporting. When a preview is pending, the notice reminds you that the numbers still describe the old applied Pattern.
Result: you know the size and materials needed for the Pattern you can currently edit or export. The grid can contain blank cells, so its width times height need not equal the filled bead count.
Read a known example
Open the original Soccer Ball and choose Edit this pattern. Before editing, Info reports 177 beads and 2 used colors: White 80-19001 needs 97 and Black 80-19018 needs 80. Its 15 × 15 motif sits on one 29 × 29 Perler Midi board; neither 225 motif cells nor 841 board cells is the bead total. Surrounding blank cells need no beads.
Use this fixed design to learn the counts, then recheck your own applied Pattern after every edit. Photo conversions can produce different counts when the crop, grid, palette, or settings change.
Inspect a used color
Chart Labels are stable references within a Project. PDF and image material legends list them in ascending order. Top colors below is a usage ranking, and Pattern materials prioritizes stock checks; their card order serves a different task and does not change those Labels.
In Top colors, select a color to see its code, required bead count, share, brand, palette, and Stash membership. These are Pattern requirements, not a count of beads you physically own. Simply inspecting a color does not regenerate the Pattern.
Compare Pattern materials
The Pattern materials section compares every color used by the current
applied visible grid, including a color without Stash membership. It shows
Required, Available, and Missing in compact cards. A highlighted
Missing count needs more stock; Unknown means no quantity has been recorded.
Select the information icon beside Pattern materials for an explanation.
A quantity is matched only by its qualified brand,
palette/size, and color ID. Not recorded and an unconfirmed identity are
not 0, and unresolved rows remain visible for review.
For the Soccer Ball example, record 80 White and 100 Black in Inventory: White is missing 17, while Black has enough. An unrecorded quantity stays Unknown. Select the pencil button (Edit quantity) to open the same left-side task as Workbench's Manage quantities. Saving a quantity refreshes this comparison immediately from the applied visible grid; it does not require Update. A stock edit that changes Stash eligibility leaves the image-source change pending until an explicit Update replaces the grid.
Recommendations may suggest simplifying low-use colors. Review each replacement before using Clean up colors; a one-bead detail may be intentional. For direct changes and Undo, see Pattern editing.
The comparison is a whole-Pattern pre-assembly check. It does not consume stock, constrain optimization by quantity, or regenerate a manual Pattern. The XLSX export still lists required Count only.
The right panel's second tab belongs to the current mode: Image tools in Compare, Pattern tools in Pattern, and Progress in Crafting.
