Edit the Bead Grid in Your Pattern
Change beads, manage used colors, and inspect the applied Pattern

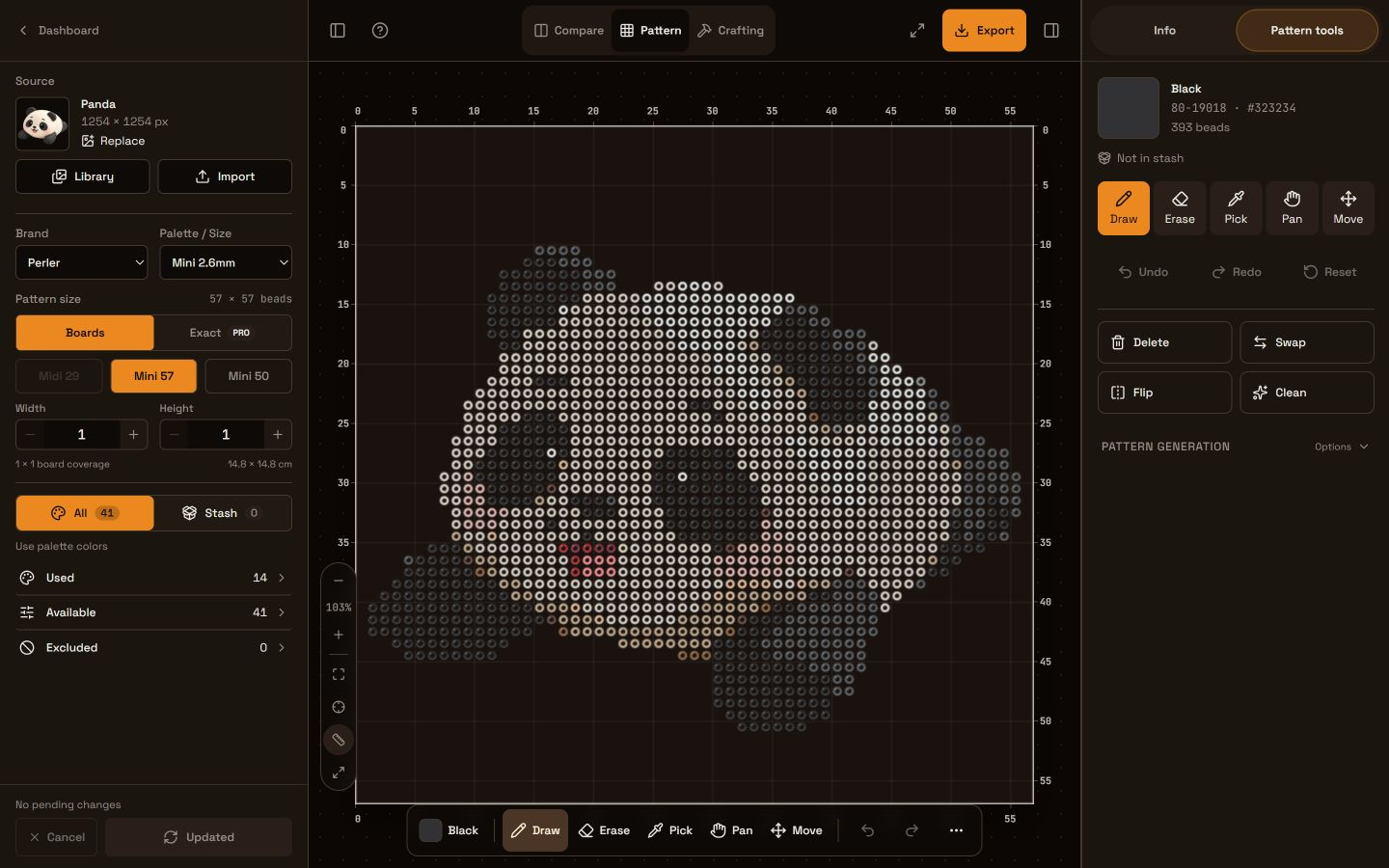

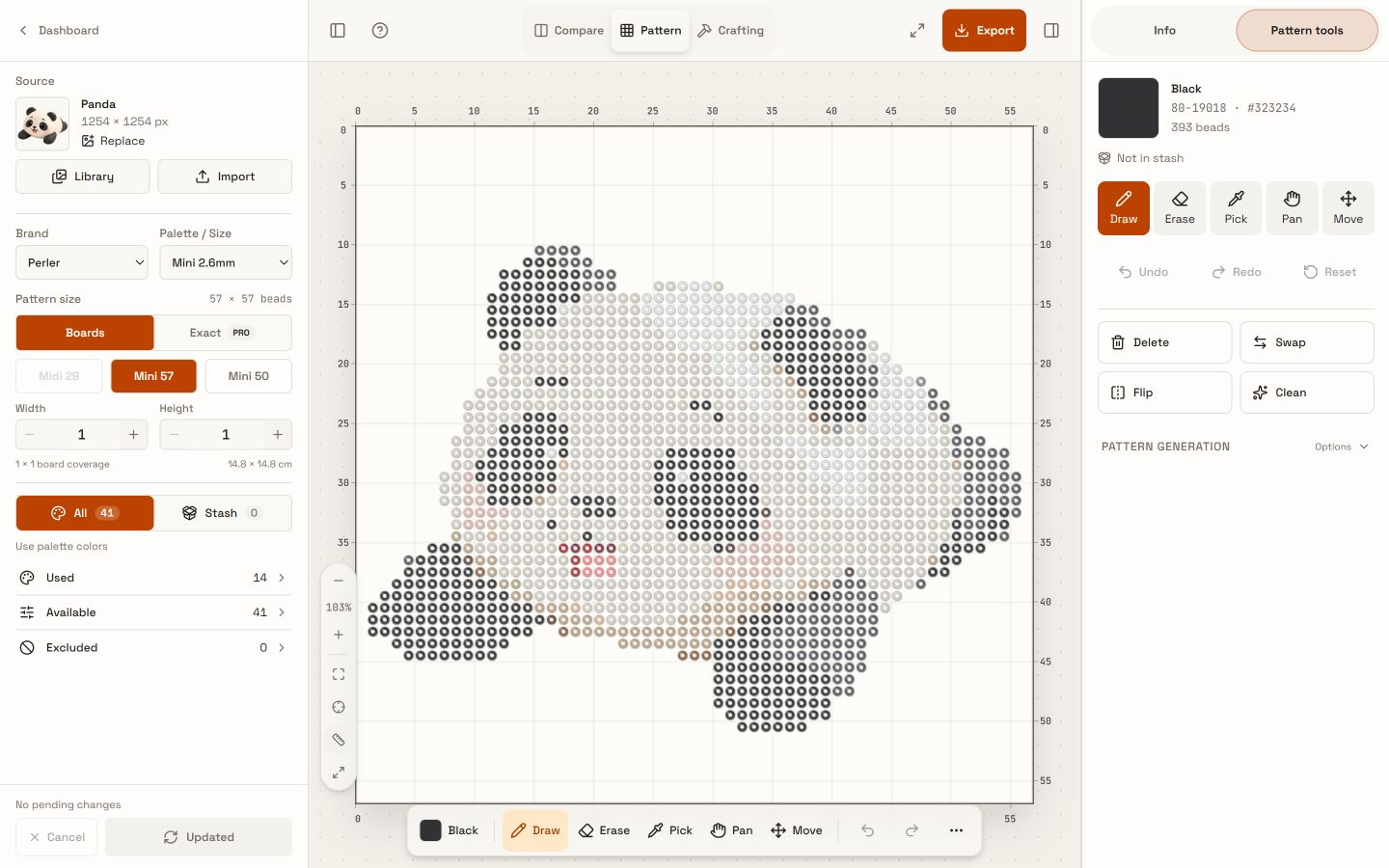

Pattern is the mode for editing the applied bead grid. Switch to it above the canvas after creating a Project or confirming a source in Compare. Your bead edits affect the Pattern used by Export.
Choose a color, then edit individual beads in Pattern.
- The current color and its bead count stay visible above the tools.
- The floating bar keeps frequent editing tools near the canvas.
Draw a pattern from scratch
In Dashboard, choose Blank pattern under Start a pattern, or choose Create > Blank pattern. Set a name, bead palette and grid size, then select Create blank pattern. No image is required; the Project opens in Pattern.
- Select Pencil, then choose a color in Add Color.
- Click an empty cell or drag across the grid to place beads. Use Eraser to clear cells, and Undo to correct your strokes. Redo opens a confirmation; choose Confirm to reapply the undone change.
- Use the editor's Dashboard button to return to your library. Wait while Saving your pattern saves the latest changes on this device. If saving fails, the editor stays open; try Dashboard again after resolving the storage problem. Guest work stays on this device. Signed-in changes enter the existing cloud-sync queue; returning does not mean cloud sync has finished. Reopen the same Project to continue. An untouched empty grid is saved too.
- Open Crafting to track assembly or Export Options to prepare files under your current plan's limits.
With guides enabled, thin lines mark individual bead cells and darker lines mark every five cells. Zoom in if the individual lines disappear at overview scale, then aim the Pencil inside one cell.
An empty cell is not a white bead. Choose a white palette color and draw it when your design needs white beads. A blank Pattern has no source image to compare; adding a source later is a separate Source action.
To resize this hand-drawn grid, keep its current palette, change only the board or Exact dimensions, and select Update. Beads keep their coordinates and size. Beads outside a smaller frame stay saved and return when you expand it again; read the confirmation if Crafting marks fall outside the new frame. Source-based color generation still requires an image.
Try a five-bead drawing
On an empty grid, choose one color and place five beads in a small plus sign: one center bead, then one directly above, below, left, and right. Open Info: Beads should be 5 and Colors should be 1. Erase one arm to get four beads; Undo restores five. The other grid cells stay empty. Return with Dashboard, reopen the Project, and check the same count before previewing an export. This tests your drawing and local save without needing an image or a paid plan.
Change a few beads
- Choose Pencil and select a color. The Quick Palette shows your current color; select it to reopen Add Color.
- Select a bead on the canvas to color it. Choose Eraser to clear a bead.
- If a change lands in the wrong place, use Undo and try again.
Result: the applied Pattern reflects the bead edit. Pick can sample a bead on the canvas and make it the next Pencil color.
Tip: zoom in before changing isolated beads. Fit, Center, Guides, and Maximize help you inspect the canvas without changing Pattern data or exported files.
Change a color throughout the Pattern
Use Delete Color when you want to remove one used color everywhere: select it, choose the color on the canvas or in Used Colors, check the swatch and bead count, then select Delete. There is no second browser confirmation; use Undo if you selected the wrong color.
Use Swap Colors to exchange two used colors. Select each color in turn, check both swatches, then select Swap. After either temporary color action, the previous editing tool returns.
Move repositions a design within its existing grid; Flip Horizontal mirrors it; Denoise / Clean removes isolated beads. Reset Changes returns to the state loaded when the Project opened or the most recently generated Pattern. It does not start over from the source image.
Choose colors for the next update
The right Pattern tools panel controls sampling, color matching, dithering, and cleanup for the next generation. The left sidebar controls the brand, palette, board layout, and colors. Choose All for the palette or Stash for color types you own. Excluding a color or changing Pattern tools stays pending until you select Update. The current Pattern may still contain an excluded color before that update.
For the complete Stash and Excluded workflow, see Choose colors and update. Stash selects owned color types; Inventory separately records optional quantities for a materials check. Generation does not reserve or consume that stock. Board layout and Pro Exact size are covered in Board and size.
Reduce stray colors with Light cleanup
Try this with the public Panda example in the image converter. Select Panda, then Open Workbench. Use these settings so you can compare the same result:
| Setting | Value |
|---|---|
| Source | Panda, 1200 × 1200 px |
| Brand and palette | Perler, Midi 5mm |
| Pattern size | Boards, Midi 29, width 1, height 1 (29 × 29 cells) |
| Color source | All 118 colors, no exclusions |
| Pattern generation | Pixel art, Lab, Dithering Off |
- Switch to Pattern, open Pattern tools, expand Pattern generation and set Cleanup to Off. Select Update if settings are pending. Check Info: this example uses 352 beads and 14 colors.
- In Pattern generation, change only Cleanup to Light, then select Preview in Compare. This is a draft: your applied Pattern and its statistics have not changed yet.
- Inspect the eyes, outline and small gaps beside the source. Select Apply to pattern to keep the draft, or Discard to keep the old result. Applying regenerates the Pattern from the source; try it before detailed bead-by-bead edits.
- Return to Pattern → Info. After Apply, the same example has 352 beads and 12 colors. Check Used colors and individual cells before deciding whether to keep the result.
Before: Cleanup Off. The applied Pattern uses 352 beads and 14 colors.
After: Light, Preview in Compare, then Apply to pattern. The source, palette, board and other generation settings are unchanged.
Light does not remove every low-use color. Here, 9 beads across 5 low-use colors remain: Steel 3, Salmon 2, Light Brown 2, Sand 1 and Dark Grey 1. A rare color may still be an intentional detail. Zoom in and use Pencil or Eraser to refine individual beads; use Undo if a change loses a detail.
This generation setting is separate from Denoise / Clean on the applied Pattern and from Info → Upgrade to clean up, the Pro one-click replacement of low-use colors. This example uses neither of those actions. Results depend on the image, palette and grid size; fewer colors alone do not prove a better Pattern. For owned-color filtering, continue with the existing Stash and Excluded guide. To read this result's numbered grid and material table, see the three-page Panda PDF example.
Inspect and finish
The right Info tab summarizes dimensions, palette, export readiness, and used colors. Select a used color to inspect its count and share. See Pattern information for the applied counts and Shared controls for the panel relationship.
When the Pattern is ready, open Crafting to track physical assembly or Export Options to choose a file format. Export uses this applied Pattern; pending Compare image changes and pending sidebar settings are not included.
